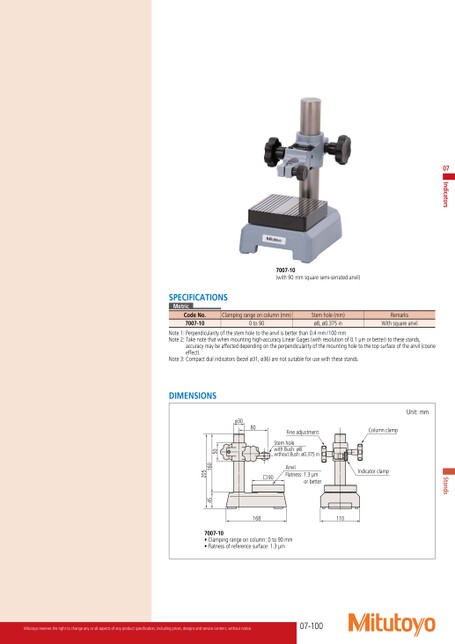

7007-10(with90mmsquaresemi-serratedanvil)SPECIFICATIONSMetricCodeNo.7007-10Clampingrangeoncolumn(mm)0to90Stemhole(mm)ø8,ø0.375inRemarksWithsquareanvilNote1:Perpendicularityofthestemholetotheanvilisbetterthan0.4/100.Note2:Takenotethatwhenmountinghigh-accuracyLinearGages(withresolutionof0.1μmorbetter)tothesestands,accuracymaybeaffecteddependingontheperpendicularityofthemountingholetothetopsurfaceoftheanvil(cosineeffect).Note3:Compactdialindicators(bezelø31,ø36)arenotsuitableforusewiththesestands.Unit:mmColumnclampStandsIndicatorclampFineadjustmentStemholewithBush:ø8withoutBush:ø0.375inAnvilFlatness:1.3µmorbetter90DIMENSIONSø308050160205451681107007-10•Clampingrangeoncolumn:0to90mm•Flatnessofreferencesurface:1.3μm07-100
| <
|
> |
>>
